| MOQ: | 1 |
| ราคา: | สามารถต่อรองได้ |
| ระยะเวลาการจัดส่ง: | 7-16 วัน |
| วิธีการชำระเงิน: | l/c, d/a, d/p, t/t |
| ความสามารถในการจัดหา: | 10,000pcs |
TXW100089N0-SY

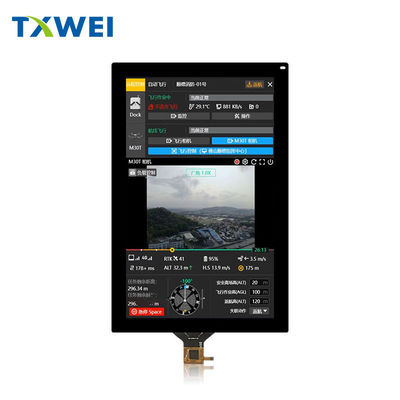

10.1-inch 2000 nits ultra bright IPS display screen——A full scene visual terminal designed for extreme outdoor use
Product Highlights
• 2000 nits ultra-high brightness: still clear and readable under direct sunlight at noon, completely bidding farewell to the problem of "black screen".
• 1200 × 1920 physical resolution: 15:24 vertical ratio, information density increased by 30%, and more key data displayed on the same screen.
• IPS full view angle: 178 ° without color cast, multi angle team collaboration without blind spots.
• MIPI-4Lane+I ² C dual interface: 4-channel high-speed video transmission, I ² C multi touch, simple wiring, stable signal.
• G+G capacitive touch: Full lamination process, supports wet hand and glove operation, aviation grade reliability.
• Industrial grade temperature range: stable operation from -10 ℃ to+60 ℃; -Safe storage at 20 ℃~+70 ℃, fearless of desert heat and plateau cold.
• 7.75mm ultra-thin body: The whole machine has reduced weight by 18%, freeing up more structural and battery space for remote controllers of drones and unmanned vehicles.
Technical specifications
• Size: 10.1 inches (diagonal)
• Resolution: 1200 × 1920 px
• Display area: 135.36 × 216.58 mm
• Dimensions: 159.96 × 241.18 × 7.75 mm
• Display IC: HX8279D (supports 24 bit color depth and finer color transitions)
• Touch IC: ST1727 (10 touch, reporting rate of 100 Hz)
• Interface: 40 Pin MIPI-4Lane+I ² C Touch
• Brightness: 2000 nits (typical)
• Perspective: IPS 178 °/178 °
• Surface: Anti glare+anti fingerprint AF coating
LCM General specification
|
ITEM |
Sandard value |
Unit |
|
LCD Type |
Normally Black |
-- |
|
Drive element |
TFT active matrix |
-- |
|
Number of pixels |
1200*3RGB(H)X1920(V) |
Dots |
|
Pixel arrangement |
RGB Vertical Stripe |
-- |
|
Pixel Pitch (W*H) |
0.1128(H)×0.1128(V) |
mm |
|
Active area |
135.36(H)x216.58(V) |
mm |
|
Viewing direction |
ALL O'CLOCK |
-- |
|
TFT Driver IC |
HX8279D |
-- |
|
TFT interface |
4lane MIPI interface |
-- |
|
Approx. Weight |
TBD |
g |
|
LCM Size(W*H*T) |
150.06(W) ×229.56(H) ×5.70(T) |
mm |
|
LCM+CTP Size(W*H*T) |
159.96(W) ×241.18(H) ×7.75(T) |
mm |
|
Touch structure |
G+G |
-- |
|
Touch Driver IC |
ST1727 |
-- |
Typical applications
Drone/unmanned vehicle remote control: real-time image transmission, OSD overlay, precise control under strong light.
Outdoor monitor: for law enforcement, emergency rescue, border inspection, all-weather visibility.
Medical equipment: mobile diagnosis, vehicle mounted rescue, highlighting and ensuring critical life data.
Smart agricultural and engineering machinery: The cockpit/remote control panel can also read clearly in direct sunlight.
Portable industrial tablet: for outdoor inspection, surveying, and storage, without the need for a sunshade.
Delivery and Support
1. Standard products can be delivered quickly within 2 weeks, supporting customized FPC length, cover logo, and AG/AR coating.
2. Provide complete driver packages and reference designs for Linux/Android/RTOS, reducing customer development cycles by 30%.
3. By obtaining CE, FCC, and RoHS certifications, we meet global export demands.
