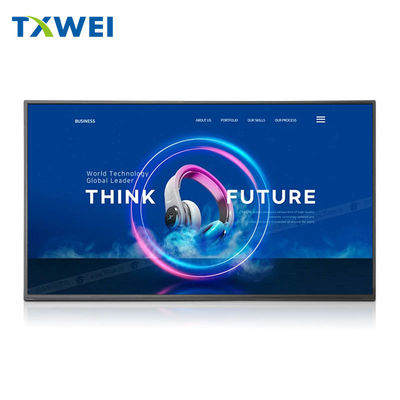

TXW185007B0 18.5 '' 1000 nits High Brightness Outdoor Screen - Bringing Information into the Sun, Turning Advertisements into Scenery
Full HD IPS high brightness screen+military grade wide temperature+LVDS high-speed interface, outdoor display in one step. ”
1,1000 nits really high brightness
• At noon, the direct sunlight reaches 80000 to 100000 lux, and the ordinary 250-500 nits screen has long been "dead"; 1000 nits ensures that the content remains sharp.
• Supports continuous high brightness output for 7 × 24 hours, with brightness attenuation<5% @ 50000 hours, and no screen replacement for three years.
• 1920 × 1080 Full HD+IPS
• 178 ° panoramic view without color distortion - the side audience can also see the true colors.
• Foggy anti glare coating, bidding farewell to "mirror" reflection, information is always readable.
2,Military grade wide temperature range
• Working temperature -20 ° C~+70 ° C, storage temperature -30 ° C~+80 ° C.
• Built in blackened polarizing film, resistant to UV aging, not afraid of extreme heat and cold.
3,LVDS 30 Pin Industrial Interface
• Plug and play with mainstream Android boards and X86 industrial control boards, with simple wiring and lower EMI.
• Supports 8-bit/10 bit color depth, and there is no need to change the cable when upgrading to 4K in the future.
4,18.5 '' gold size
• The display area is 408.96 × 230.4 mm, and the whole machine is 418.02 × 243.9 mm, with a ratio of 16:9.
• With a thickness of only 3.2 mm, it is lightweight enough to fit into a 1U chassis or ultra-thin lightbox.
5,Ultra long lifespan&low power consumption
• Adopting high brightness direct type LED backlight, with a typical power consumption of 18W, it saves 40% electricity compared to CCFL solutions with the same brightness.
• Supports PWM/DC dual dimming, automatically reduces brightness at night, saves energy and avoids glare.
6,Scene inspiration, one click copy
• Advertising machines: Mall facades, bus stop kiosks, 24/7 rotating high-definition videos.
• New energy charging piles: Real time electricity prices, remaining time, and brand promotional videos are displayed simultaneously.
• Smart lamp post: City information release, emergency broadcasting, environmental monitoring data visualization.
• Unmanned retail: outdoor self pickup cabinets, smart freezers, and posting promotional information on the "refrigerator door".
• Cultural and tourism scenic spots: Scenic spot guide, ticket information, and weather warning are displayed on one screen.
7,Implementation case (can be quickly reused)
• Case A | Shenzhen Bay Park Charging Station
• Pain points: high sea breeze, salt spray, high temperature of 45 ° C in summer, direct sunlight.
• Solution: TXW185007B0+fully laminated AR glass+IP65 casing.
• Effect: 30 charging stations have been online for 18 months, with no black screen complaints and a 37% increase in advertising revenue.
8,Specification List
Size: 18.5 inches 16:9
Resolution: 1920 × 1080 pixels
Brightness: 1000 cd/m ²
Viewing angle: 178 ° (H)/178 ° (V)
Interface: LVDS 30 Pin
Working temperature: -20~+70 ° C
Overall dimensions: 418.02 × 243.9 × 3.2 mm
Power consumption: typical 18 W/peak 24 W
Lifespan: ≥ 30000 hours
9,Take action now
The first batch of spot goods has been stocked and supports a minimum order of 1 piece plus 7 days for sample production.
Contact us to receive the "White Paper on Outdoor High Brightness Screen Selection" and a demo video, so that the next "daylight readable" device can start from TXW185007B0.ous operation by multiple people.
