| MOQ: | 1 |
| ราคา: | สามารถต่อรองได้ |
| ระยะเวลาการจัดส่ง: | 7-16 วัน |
| วิธีการชำระเงิน: | l/c, d/a, d/p, t/t |
| ความสามารถในการจัดหา: | 10,000pcs |

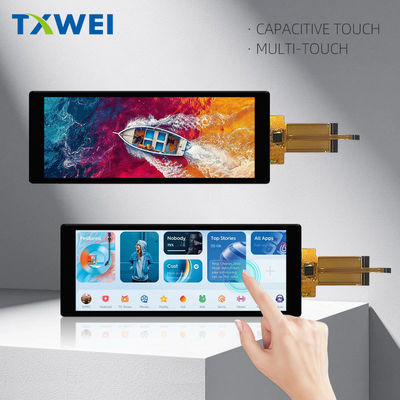

Small stature, big vision! TXW620002B1-DJ01 6.2-inch ultra-thin touch screen, with full field view display from -20 ℃ to 70 ℃
|
ITEM |
Sandard value |
Unit |
|
LCD Type |
Normally Black |
-- |
|
Drive element |
TFT active matrix |
-- |
|
Number of pixels |
360*3RGB(H)X960(V) |
Dots |
|
Pixel arrangement |
RGB Vertical Stripe |
-- |
|
Pixel Pitch (W*H) |
0.1536 (H) x 0.1536 (V) |
mm |
|
Active area |
55.30(H) x 147.46(V) |
mm |
|
Viewing direction |
ALL O’CLOCK |
-- |
|
TFT Driver IC |
ST7701SN |
-- |
|
TFT interface |
24bit RGB Interface |
-- |
|
LCM Size(W*H*T) |
58.10(W) ×154.90(H) ×2.30(T) |
mm |
|
LCM+CTP Size(W*H*T) |
65.00(W) ×168.00(H) ×4.63(T) |
mm |
|
Approx. Weight |
TBD |
g |
|
Touch structure |
G+FF |
-- |
|
Touch Driver IC |
GT911 |
-- |
|
Touch Interface |
I2C |
-- |
— 01 —
Hard core parameters that make one's heart race at a glance
• True Full Screen: 6.2 "360 x RGB x 960 resolution, 16.7M color software adjustable, color transition silky smooth to unbelievable.
• Full view ALL O'CLOCK: High contrast can be maintained at any angle, bidding farewell to the embarrassment of "gray on one side".
• 24 bit RGB interface: fast refresh, low latency, directly feeding mainstream controllers such as STM32, RK, Quanzhi, Raspberry Pi, etc.
• Equipped with GT911 touch control: G+FF structure, I ² C interface, five point touch, capable of writing, drawing, sliding and flying.
• High brightness LED backlight: typically 350 cd/m ², still transparent under outdoor sunlight, with a lifespan of ≥ 30000 hours, on standby 24/7.
• Ultra thin and light: The module thickness is only 2.3 mm, and the touch cover is also 4.63 mm, making it possible to fit even the smallest size of the shell.
— 02 —
Engineers' favorite 'invisible buff'
• Industrial grade temperature range: -20 ℃~+70 ℃ for operation, -30 ℃~+80 ℃ for storage, stable in both northern winter and southern sauna rooms.
• Hardware reset protection: RESX abnormal power failure/hot plugging does not cause screen flickering, automatically recovers when powered on, and reduces a pile of hair loss during debugging.
• Lead free and environmentally friendly process: Compliant with RoHS, exporting to the EU without pressure, providing a worry free one-stop process from sampling to mass production.
Full reliability: 80 ℃/96 h, 10 cycles of cold and hot shock, 90% RH humidity storage... all passed, safe for industrial, automotive, and medical use.
Smart Home&IoT (to look good and save power)
✅. 86 boxes of intelligent central control screen (replacing traditional switches)
✅. Refrigerator/washing machine/oven glass door transparent screen
✅. Smart speaker with screen, desktop robot
✅. Visual doorbell, peephole, gun pan tilt zoom local screen
✅. Electric bed/massage chair/treadmill control panel
Industrial&Medical (Wide Temperature+High Brightness+Long Life)
✅. Handheld scanning PDA and RFID inventory machine
✅. Industrial gateway, HMI touch integrated panel
✅. Testers, oscilloscopes, and power quality analyzers
✅. Medical portable ultrasound and blood oxygen monitor secondary screen
✅. Unmanned aerial vehicle/AGV remote control ground station
Car and outdoor (clear direct sunlight)
✅. Intelligent instrument panel for new energy two wheelers/three wheelers
✅. Rear entertainment screen and ceiling folding screen of the car
✅. On board diagnostic device OBD handheld terminal
✅. Outdoor portable energy storage power visualization panel
✅. Handheld toll collectors for high-speed ETC lanes
Supply&Support
Spot samples: shipped from Shenzhen warehouse on the same day, no waiting for sampling.
Customized services: FPC length, backlight brightness, CTP cover logo, optical full lamination, all can be negotiated.
Technical support: Provide ST7701SN initialization code, GT911 driver routine, RGB interface reference schematic, engineers answer questions online, so that you can avoid pitfalls from 0 to 1.
