| MOQ: | 1 |
| ราคา: | สามารถต่อรองได้ |
| ระยะเวลาการจัดส่ง: | 7-16 วัน |
| วิธีการชำระเงิน: | l/c, d/a, d/p, t/t |
| ความสามารถในการจัดหา: | 10,000pcs |

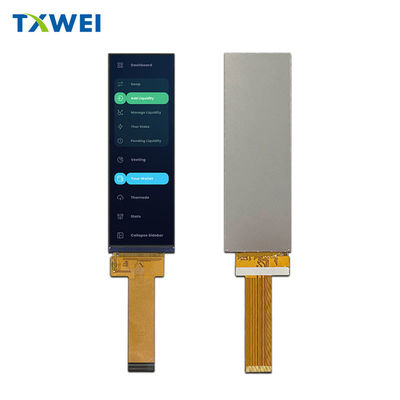

4.58-inch strip TFT LCD display module TXW460010B0 | 320x960 resolution | MIPI interface | Industrial grade display solution
Product model: TXW460010B0
Manufacturer: Shenzhen Tianxianwei Technology Co., Ltd. (TXW)
Application directions: industrial control, smart home, medical equipment, in car display, consumer electronics
Product Overview
TXW460010B0 is a high-performance 4.58-inch TFT LCD display module with a 320 × RGB × 960 high-resolution design, equipped with ST7701SN driver chip, supports 16.7M color display, and has MIPI 2-lane interface, suitable for smart devices with high requirements for display effect and stability. This module has a compact structure, low power consumption, and wide viewing angle, making it an ideal display solution for industrial and consumer electronic products.
Product Highlights
High resolution display: 320 × RGB × 960 pixels, with realistic color reproduction and delicate picture quality.
Full view display: ALL O'CLOCK perspective design, suitable for viewing from multiple angles.
MIPI interface: Supports 2-lane MIPI DSI for high-speed and stable transmission.
LED backlight: White LED backlight with a brightness of up to 500 cd/m ² and a lifespan of up to 30000 hours.
Industrial grade reliability: Wide operating temperature range (-20 ° C to+70 ° C), suitable for various harsh environments.
Lightweight design: The module thickness is only 2.4mm, making it easy to integrate into compact devices.
Technical Specifications
|
ITEM |
Sandard value |
Unit |
|
LCD Type |
Normally Black |
-- |
|
Drive element |
TFT active matrix |
-- |
|
Number of pixels |
320*3RGB(H)X960(V) |
Dots |
|
Pixel arrangement |
RGB Vertical Stripe |
-- |
|
Pixel Pitch (W*H) |
0.1149 (H) x 0.1149 (V)
|
mm |
|
Active area |
36.77(H) x 110.30(V) |
mm |
|
Viewing direction |
ALL O’CLOCK |
-- |
|
TFT Driver IC |
ST7701SN |
-- |
|
TFT interface |
2lane MIPI Interface |
-- |
|
LCM Size(W*H*T) |
39.47(W) ×116.95(H) ×2.40(T) |
mm |
|
Approx. Weight |
TBD |
g |
|
Touch structure |
-- |
-- |
|
Touch Driver IC |
-- |
-- |
|
Touch Interface |
-- |
-- |
reliability test
The TXW460010B0 display module has passed multiple rigorous environmental reliability tests to ensure long-term stable operation
High/low temperature storage and operation testing (-30 ° C~+80 ° C)
Temperature and humidity cycling test (60 ° C, 90% RH, 96H)
Cold and hot shock test (-20 ° C) ↔ 70 ° C, 10 cycles)
Application field
The TXW460010B0 display module is widely used in the following scenarios:
Industrial control panel
Smart home terminal
Medical monitoring equipment
Vehicle information display
Wearable devices
Handheld terminals and instruments
Why choose TXW?
Shenzhen Tianxianwei Technology Co., Ltd. is a high-tech enterprise specializing in the research and manufacturing of small and medium-sized TFT LCD display modules. The company has a complete production line, strict quality control system, and rich export experience. Its products are exported to many countries and regions such as Europe, America, Japan, South Korea, and Southeast Asia.
We support OEM/ODM customization services and can adjust wiring, interfaces, backlight structures, touch functions, etc. according to customer needs to help your products quickly land in the market.
Frequently Asked Questions (FAQ)
Q1: Does it support touch function?
A: Currently, it is a standard display module without touch. If touch function is required, a capacitive touch screen (CTP) can be customized and added.
Q2: Do you provide development boards and driver support?
A: We can provide development materials such as initialization code, pin definitions, and driver reference designs to assist customers in quick debugging.
Q3: What is the minimum order quantity?
A: The minimum order quantity for standard products is 100 pieces, and sample testing is supported.
วิดีโอ
วิดีโอ
วิดีโอ
วิดีโอ
วิดีโอ
วิดีโอ
วิดีโอ
|
|
